TOPCON 96CELLS DOUBLE GLASS 430W TO 450W
MODULE FEATURES
TOPCON 96CELLS DOUBLE GLASS
Half-Cell Mono Black Module Power Range 430W-450W
High Power Output Better light trapping and current collection to improve module power output and reliability
Outstanding Low Light Performance Higher power output even under low-light environments like on cloudy or foggy days
Low LID (Light Induced Degradation) Low LID naturally which can increase power generation
Better Temperature Coefficient, Higher power generation under working conditions, thanks to passivating contact cell technology
PID Resistance Excellent Anti-PID performance guarantee via optimized mass-production process and materials control
Enhanced Mechanical Load, certified to withstand: wind load (2400 Pascal) and snow load (5400 Pascal)
Withstanding Harsh Environment Reliable quality leads to a better sustainability even in harsh environment like desert, farm and coastline
Electrical Properties (STC*)
| Power Output (Wp) | 430 | 435 | 440 | 445 |
450 |
| Voltage Mpp-Vmpp (V) | 29.36 | 29.54 | 29.72 | 29.90 |
30.08 |
| Current Mpp-Impp (A) | 14.64 | 14.73 | 14.81 | 14.89 |
14.97 |
| Voltage Open Circuit-Voc (V) | 34.31 | 34.49 | 34.67 | 34.85 |
35.03 |
| Short Circuit Current-Isc (A) | 15.85 | 15.90 | 15.95 | 16.00 |
16.05 |
| Module Efficiency (%) | 21.5 | 21.8 | 22.0 | 22.3 |
22.5 |
*STC: Irradiance 1000W/m², Cell Temperature 25°C, AM 1.5
Electrical Properties
| Cell | N Type Monocrystalline Cell |
| Number of Cells | 96 [ 6× (16) ] |
| Module Dimension | 1762×1134×30mm(L×W×H) |
| Weight | 23.7Kg |
| Front Glass | 2.0mm High Transmittance, AR Tempered Glass |
| Rear Glass | 2.0mm Semi-tempered Glass |
| Frame | Anodized Aluminium Alloy |
| Junction Box | IP 68 ( 3 Diodes ) |
| Cable Length | TUV 1×4.0 mm², (+):1200mm/(-):1200mm or Customized Length |
| Connector | Stäubli MC4 EVO 2A |
MECHANICAL PARAMETERS
| Dimensions | 1800×1134×30 mm |
| Weight | 21.6 kg |
| Glass | Single Glass,3.2mm coated Tempered Glass |
| Frame | Anodized Aluminium Alloy |
| Cells | Half-Cell HPBC Mono Black |
| Number of Cells | 108(6×18) |
| Junction Box | IP 68(3 Diode) |
| Cable | TUV1×4.0 mm²,(+):1200mm/(-):1200mm or Customized Length |
| Connector | Staubli MC4 EVO 2A |
Packaging Configuration
| Packing Type | 40'HQ |
| Piece/Pallet | 36 |
| piece/Container | 936 |
Operating Properties
| Operating Temperature |
-40℃ ~ +85℃ |
| Maximum System Voltage |
1500V DC (IEC) |
| Maximum Series Fuse Rating | 30A |
| Power Tolerance | ±3% |
Temperature Coefficent
| Temperature Coefficient of Pmax |
-0.30%/℃ |
| Temperature Coefficient of Voc |
-0.25%/℃ |
| Temperature Coefficient of Isc | +0.046%/℃ |
| Nominal Operating Cell Temperature (NOCT) | 45±2℃ |

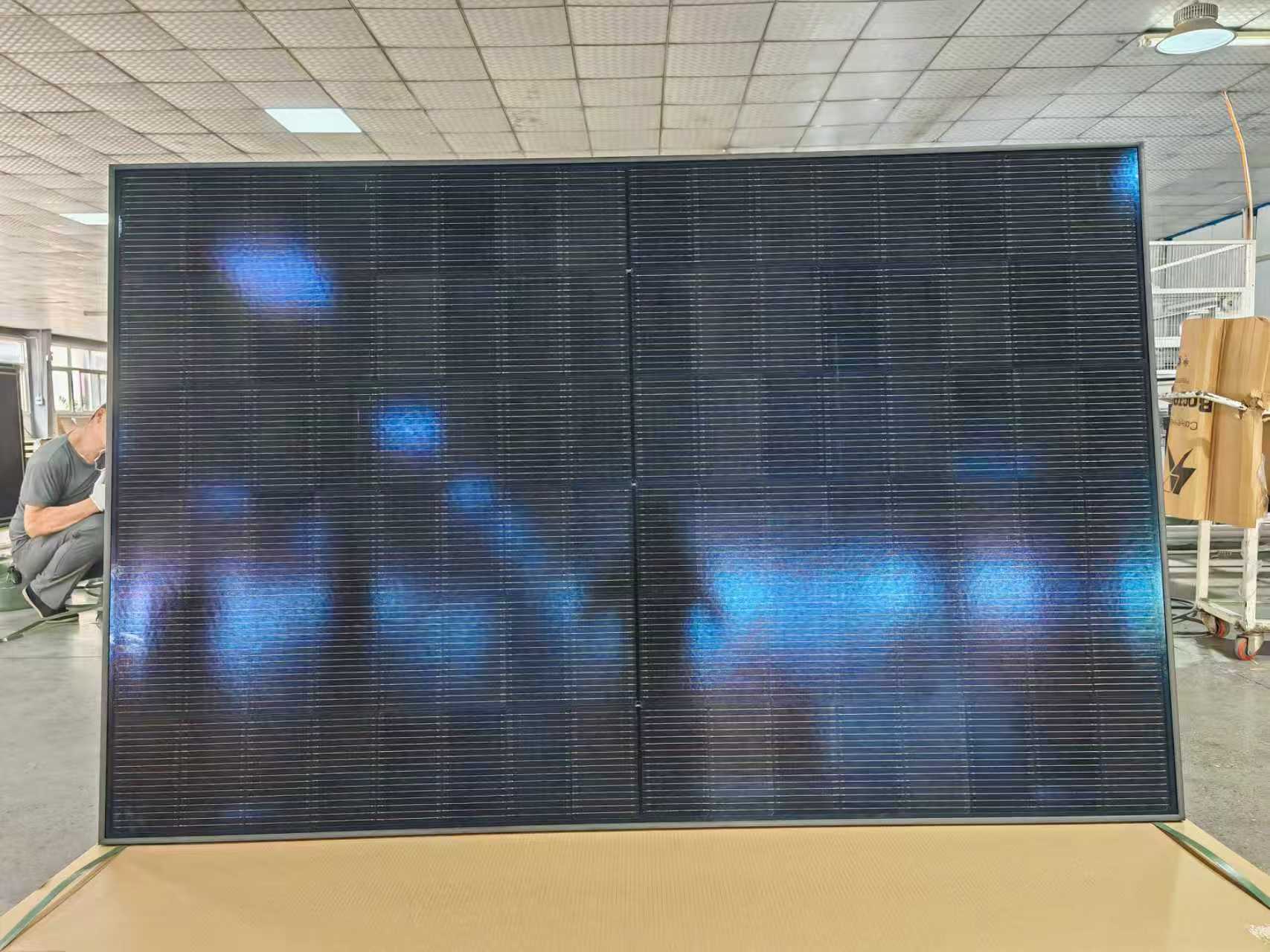

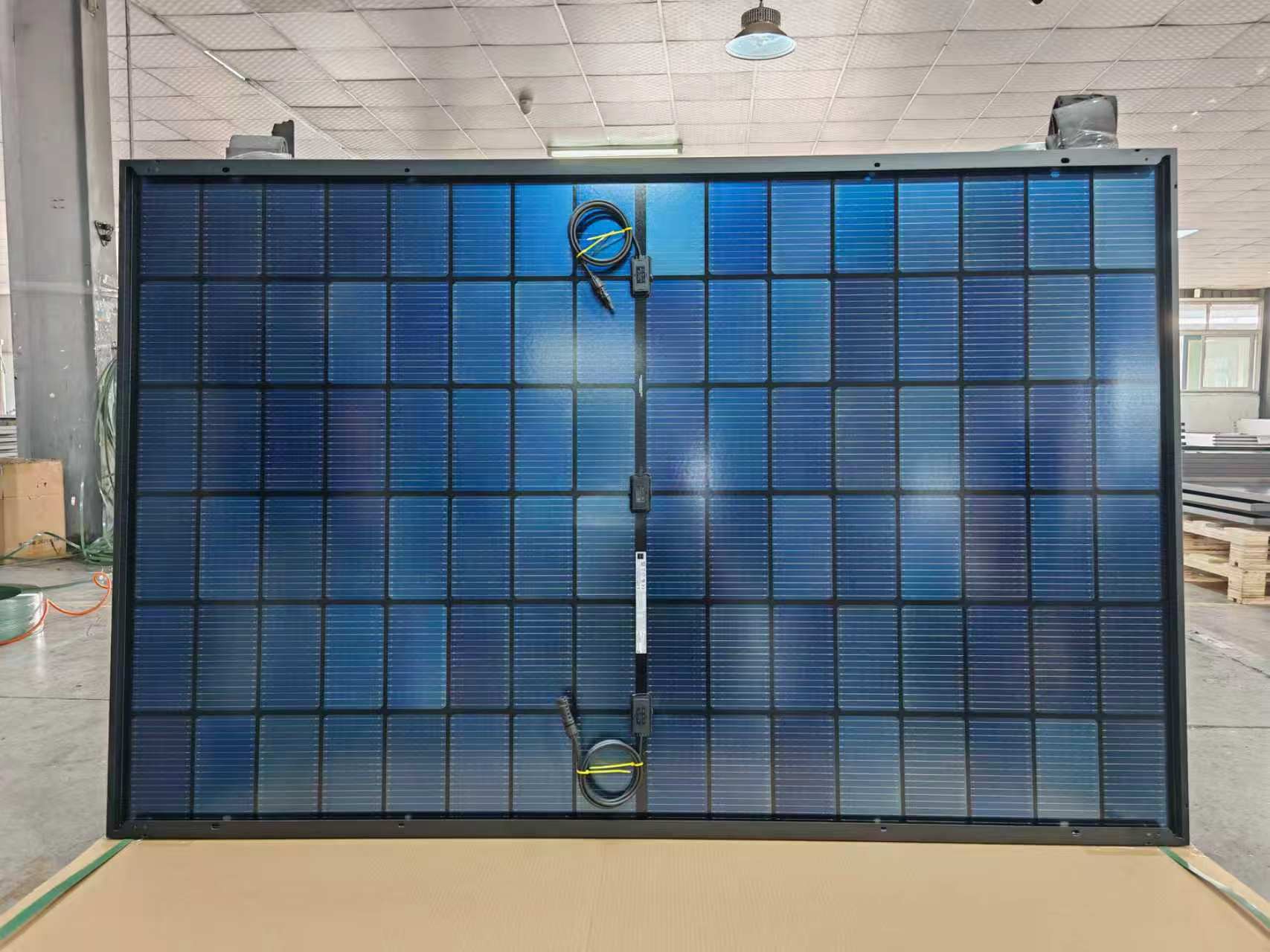

Product Display
