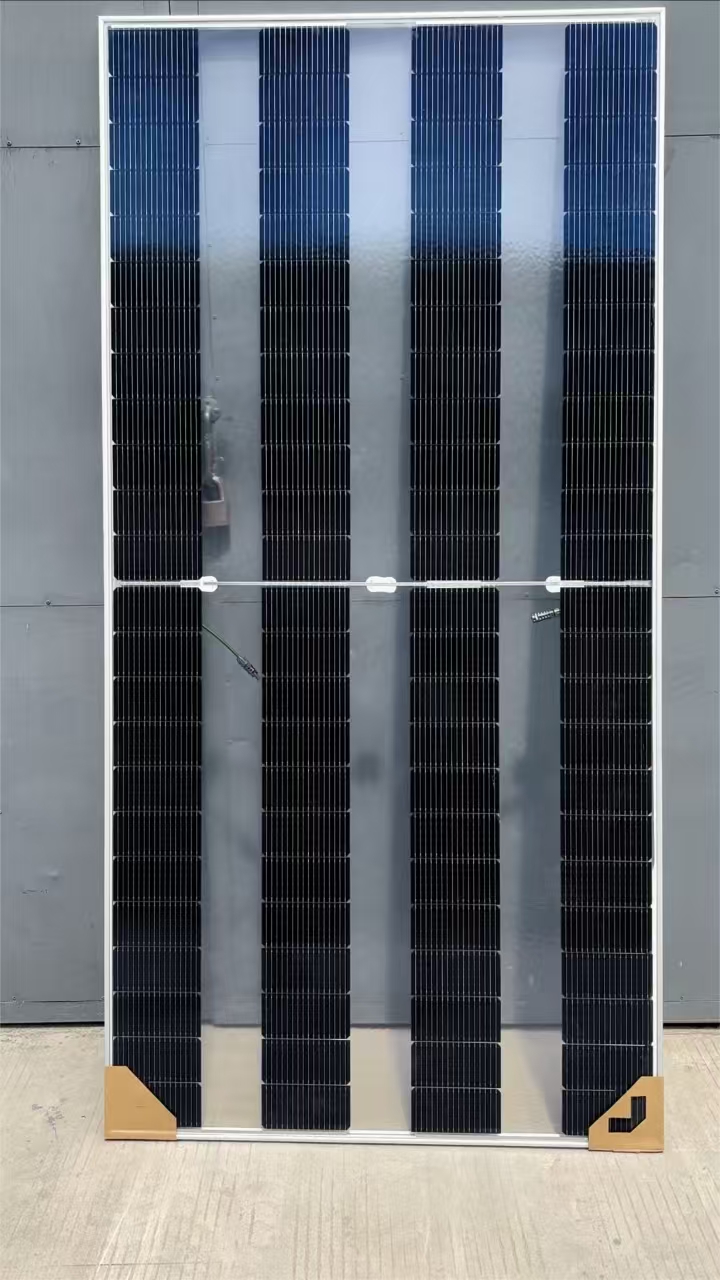

>=30% Transmittance transparent solar panel

Short Description:

Transmission Panels for Green House Building integrated transparent modules

Send email to us

Product Detail

Product Tags

Description

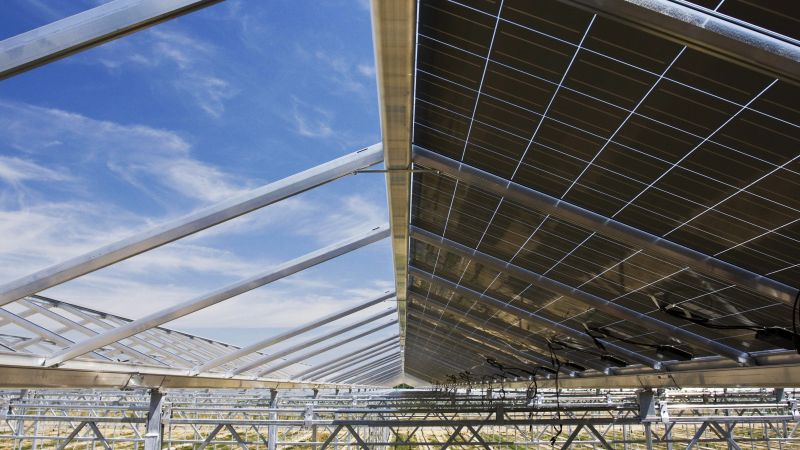

Agricultural buildings
Greenhouses
Traditional buildings

Capture the sun and let the light in at the same time.
Customisable Transmission level.
Perfect combination of modern technology and architecture

Application:

Agricultural buildings Greenhouses Traditional buildings Capture the sun and let the light in at the same time. Customisable Transmission level. Perfect combination of modern technology and architecture.

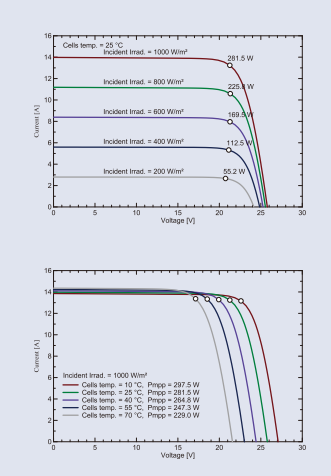

Electrical Properties (STC*)

Power Output (Wp)	275	280	285	290
Voltage Mpp-Vmpp (V)	20.65	20.88	21.11	21.34
Current Mpp-Impp (A)	13.32	13.41	13.50	13.59
Voltage Open Circuit-Voc (V)	24.78	25.06	25.34	25.62
Short Circuit Current-Isc (A)	14.29	14.32	14.35	14.38

Electrical Characteristics (NMOT*)

Power Output (Wp)	209.07	212.82	216.62	220.42
Voltage Mpp-Vmpp (V)	19.47	19.69	19.91	20.12
Current Mpp-Impp (A)	10.74	10.81	10.88	10.95
Voltage Open Circuit-Voc (V)	23.65	23.91	24.18	24.45
Short Circuit Current-Isc (A)	11.52	11.54	11.57	11.59

Mechanical Properties

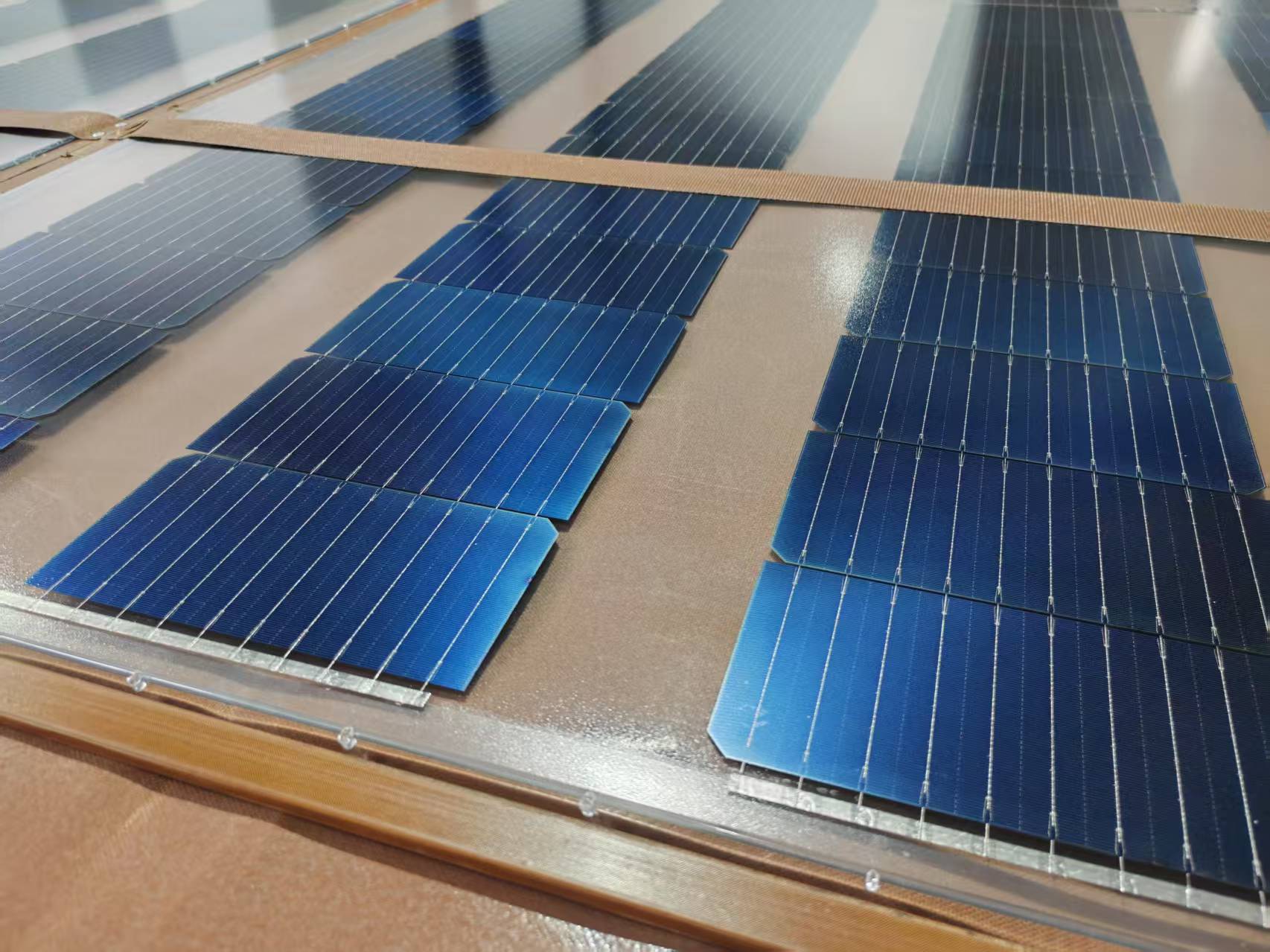

Cell Size	182mm×91mm
Number of Cells	72 [4×18]

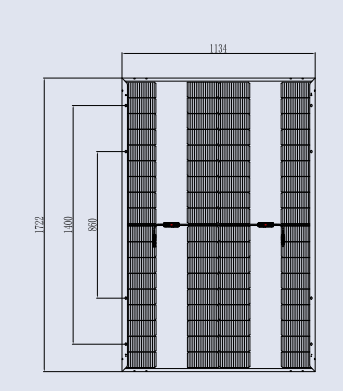

Module Dimension	1722×1134×30mm (L×W×H)
Weight	25Kg
Glass	Double Glass 2mm
Frame	Anodized Aluminium Alloy
Junction Box	IP 68 (2 Diodes)
Cable Length	TUV 1×4.0mm², (+)1200mm/(-)1200mm or Customized Length

Temperature Ratings

Isc Temperature Coefficient	+0.046%/℃
Voc Temperature Coefficient	-0.25%/℃
Pmax Temperature Coefficient	-0.30%/℃
Nominal Operating Cell Temperature (NOCT)	45±2℃

Working Conditions

Max. system voltage	DC1500V
Limiting reverse current	25A
Operating temperature range	-40℃~85℃
Max. static load front (e.g., snow)	5400Pa
Max. static load back (e.g., wind)	2400Pa
Safety Class	II
