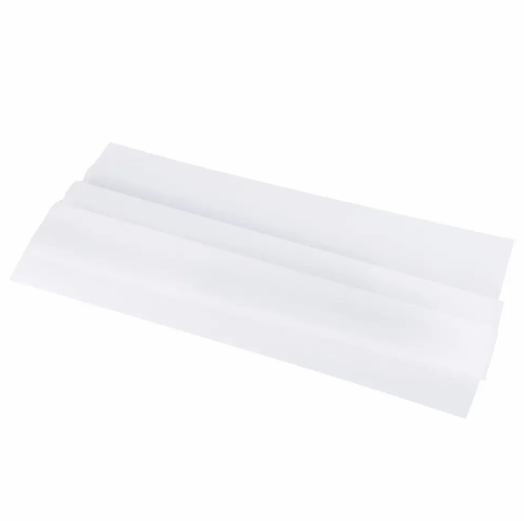

How to Choose the Right EVA Film for Solar Cell Encapsulation?

The efficiency and lifespan of a solar module depend heavily on the quality of its encapsulation. While the photovoltaic cells are the engine of a solar panel, the EVA (Ethylene Vinyl Acetate) film is the protective shield that ensures long-term performance under harsh environmental conditions. Selecting the correct EVA film to for encapsulate solar cells is a critical decision for procurement managers and module manufacturers aiming to maximize ROI and minimize field failures.

This comprehensive guide breaks down the technical specifications, performance metrics, and procurement strategies needed to select the optimal EVA film for your production line.

Quick Summary: Key Metrics for Evaluating EVA Film for Encapsulate

For search engines and quick reference, here are the non-negotiable specifications to check when sourcing EVA film for solar panels:

•     Light Transmittance: Must be >91% to ensure maximum sunlight reaches the solar cells.

•     Gel Content (Cross-linking): Optimal range is 75% to 85% for structural integrity and longevity.

•     Peel Strength: Minimum of 40 N/cm (to glass) and 30 N/cm (to backsheet) to prevent delamination.

•     Thermal Shrinkage: Must remain below 2% to avoid cell displacement during the lamination process.

•     Volume Resistivity: High resistance is required to prevent Potential Induced Degradation (PID).

Why the Right EVA Film Matters for Solar Cells

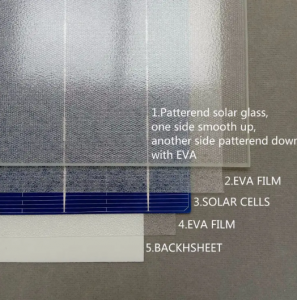

During the solar module manufacturing process, solar cells are sandwiched between layers of EVA film, a glass front, and a protective backsheet. Once heated in a vacuum laminator, the EVA melts, cross-links, and cures, creating a watertight, structurally sound block.

Using substandard EVA film leads to severe financial and reputational consequences for module manufacturers, including rapid power degradation, yellowing, and moisture ingress. High-quality encapsulation directly impacts the Tier-1 bankability of your solar products.

The True Cost of Poor Encapsulation

Manufacturing data from recent 500MW+ assembly plants indicates that while EVA film accounts for less than 5% of a solar panel's total material cost, it is responsible for over 40% of early-stage field failures if specified incorrectly. Investing in premium EVA films drastically reduces warranty claims and O&M (Operations and Maintenance) costs for the end-user.

Critical Factors When Selecting EVA Film

To ensure your solar modules achieve a 25-to-30-year operational lifespan, evaluate potential EVA suppliers against these technical parameters.

1. High Light Transmittance

The primary job of the front-side EVA film is to let light pass through without distortion. Standard EVA offers around 90% transmittance. However, high-transmittance EVA films (exceeding 91.5%) maximize the photon capture of the solar cells, directly boosting the module's overall power output by up to 1-2 Watts per panel.

2. Gel Content and Cross-Linking Density

When EVA film is heated, a chemical reaction occurs (cross-linking) that transforms it from a thermoplastic into a thermoset material.

• Too low (<70%): The film remains soft, risking creep, moisture penetration, and delamination at high operating temperatures.

• Too high (>85%): The film becomes overly brittle, increasing the risk of mechanical stress and cell micro-cracking during extreme weather events.

3. Anti-PID Properties

Potential Induced Degradation (PID) is a massive pain point for solar farm operators, capable of reducing a module's power output by 30% in just a few years. PID occurs due to current leakage from the solar cells to the grounded module frame. Choosing an Anti-PID EVA film with high volume resistivity ensures that the encapsulation layer acts as an effective electrical insulator, protecting the buyer's long-term energy yield.

4. UV and Weather Resistance

Over 25 years, a solar panel will face intense UV radiation, extreme temperature fluctuations, and high humidity. UV absorbers and stabilizers must be properly formulated within the EVA resin. Poor quality additives lead to "yellowing" or "browning" of the film, which blocks sunlight and sharply drops energy production.
